OLD HEADLIGHTS AND TAIL LAMP LENSES
Here are some old car lenses that I have accumulated over the years. Not sure what they all fit. They are all glass except the four on the bottom row which are plastic.
Hold CRTL and (+)(-) to zoom in and enlarge the photos.

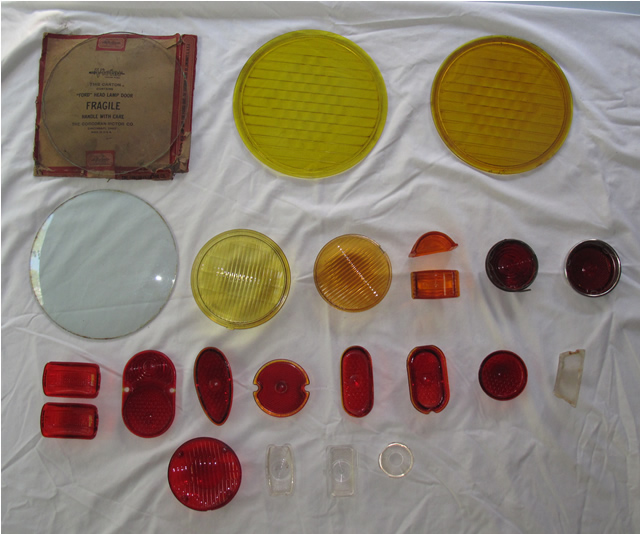

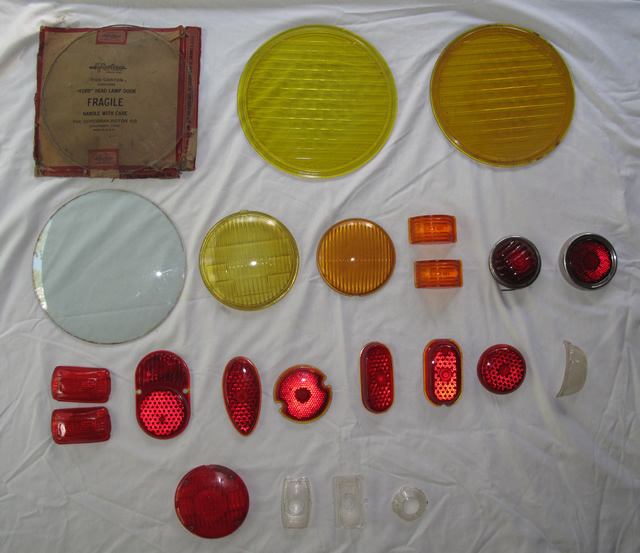

Front view

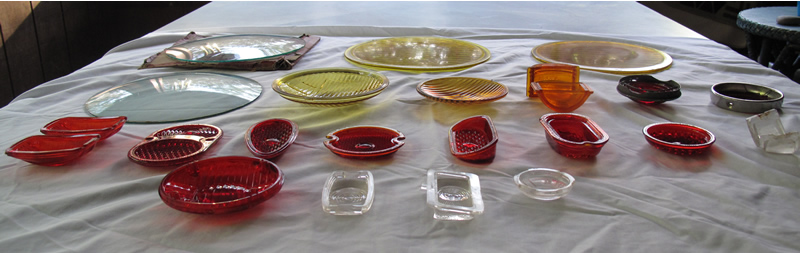

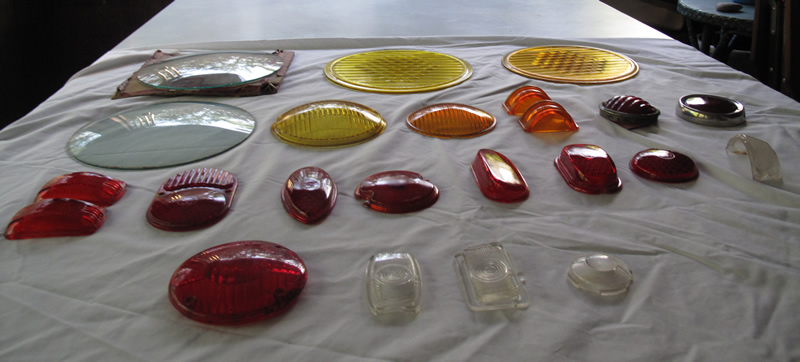

Back view
- (1) Ford, probably late teens early 20's? 9 1/4" dia., Curved, rough edges, obviously hand finished. Looks to be new in the Victor package.
- (2) Corning Conaphore tinted lense, flat, stamped 9 3/4"
- (3) Corning Conaphore tinted lense, flat, stamped 9 1/4", This lense came in the headlight bucket shown below - probably early Ford although I don't see how a curved lense could be held in place correctly in this stlye headlight - seems to be for a flat lense?
- (2) Corning Conaphore tinted lense, flat, stamped 9 3/4"
- (1) Same as A-1 above only used, 9 1/4" dia., Curved, glass seems thinner than the Victor item above
- (2) A R MFG CO, CHICAGO, USA, 5 7/8" curved amber glass, #8304 over a 7 (1953-62 Chev, Pont, Dodge, Ford, etc.)
- (3) CHICAGO RADIATOR-AUTO #8045, 4 5/8" curved yellow glass
- (4) A PAIR of modern, glass yellow truck marker lights DIETZ 534
- (5) ? L.L. CO H**L 12640, round and curved w/chrome trim, fits 3" opening
- (6) SGCO 1378 CB700, on front Stimsonite NACO, Pats. 1671086, 1743832, 1874138, etc. lense opening about 3", opening in chrome mounting 3 1/4" (Bantam tail lamp?)
- (2) A R MFG CO, CHICAGO, USA, 5 7/8" curved amber glass, #8304 over a 7 (1953-62 Chev, Pont, Dodge, Ford, etc.)
- (1) A PAIR 365 curved, 3 9/16" x 2 1/16" (1940 Plymouth)
- (2) large Combination lense, 1733, 5 3/16" x 3 3/16", Pats 1671086, 1743835, 1807350, 1895175, etc. 1925-1930 Chevy tail light
- (3) Teardrop lense, K-D TRIFLEX SALITE A No 275, 4 11/16" x 2 1/4" (1937, 38 Olds, 1939 Chev, Pont. tail)
- (4) Round w/ears, 1539,3 7/16", Pat. 1591572, 1671086, 1743834, 1874138, etc. (1933-36,46,47 Ford)
- (5) Oval w/taper from 0" deep to 7/8" deep,4 1/4" X 2", K-D TRIFLEX A No 278 L. L. Co 2(3?)93 L.H., Pat. 1591572, 1743834, 1807350, 1906655, etc.(1940 Chevy LH Tail)
- (6) Oval, K-D TRIFLEX A No 276 L. L. Co., 4" X 2 3/8", Pats. 1671086, 1874138, CHIPPED! (1937,38 Pontiac)
- (7) Round 3" K-D TRIFLEX FULITE A No 270 SEMA APPROVED - same Pats.(1937 Ford)
- (8) Clear curved license plate lense? VERY CHIPPED!, Tapers from 3 1/2" down to 2 3/8", Hgt 7/8" to 1 1/4", No Markings
- (2) large Combination lense, 1733, 5 3/16" x 3 3/16", Pats 1671086, 1743835, 1807350, 1895175, etc. 1925-1930 Chevy tail light
- (1) Plastic, SIGSTAT B'KLN, NY - fits 4 3/16" opening, DAMAGED!
- (2) Plastic, clear, Guide F-1 5932410, 3 1/8" x 1 3/4" (1941 Chevy Parking Lens)
- (3) Plastic, clear, 5935923, 3 1/8" x 1 3/4", ONE TAB BROKEN OFF!
- (4) Plastic, clear, round, FPT 51 with something in an oval, 2 1/8", ROUGH!(1951 Ford Parking Lens)
- (2) Plastic, clear, Guide F-1 5932410, 3 1/8" x 1 3/4" (1941 Chevy Parking Lens)

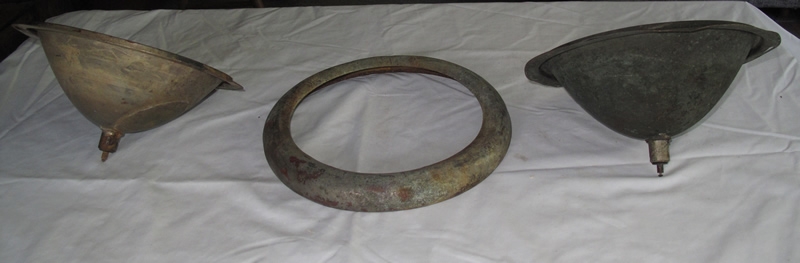

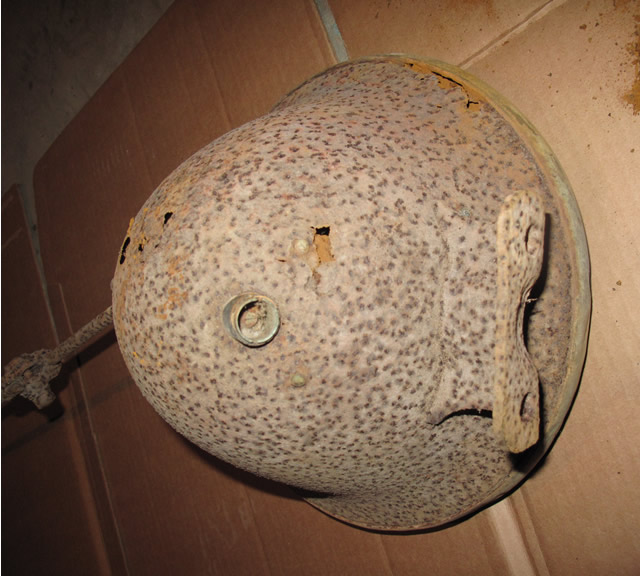

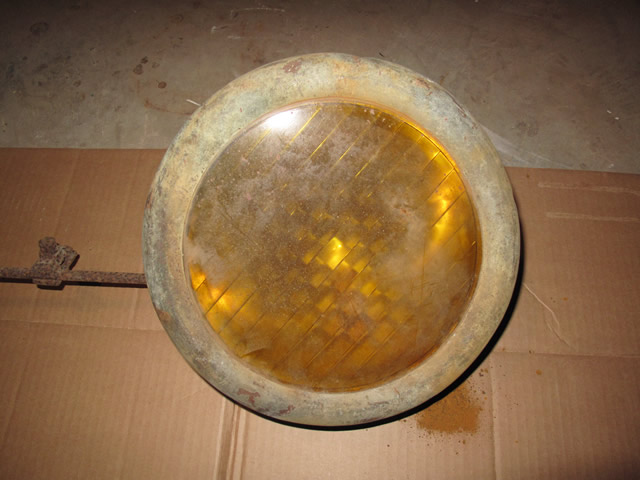

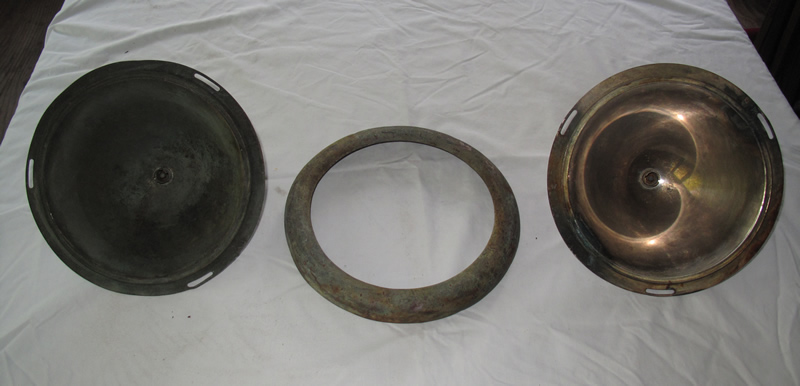

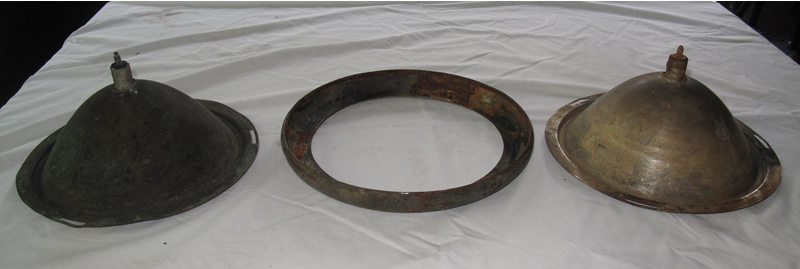

These are the headlights that the yellow, 9 1/4" Conaphore lense was in.
It must be late teens or early 20's as that is when Corning Conaphore lenses were popular?

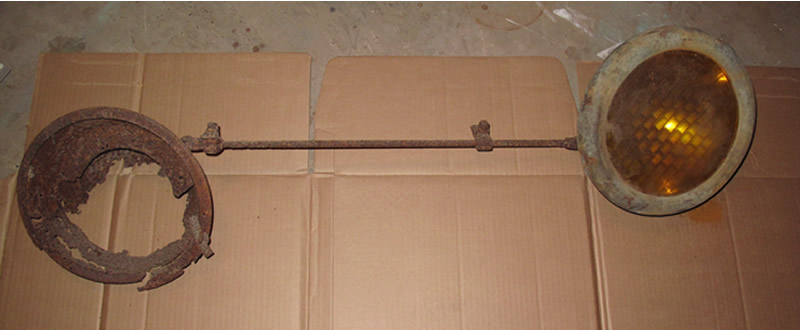

These lights were made to mount directly on the fenders. The bar in between was usually used to hang the license plate from.
The bar between the lights is 23" long so that would establish how far apart the lights were when mounted on the fenders.
